TU-15B Diesel Engine Compression Test Set, 17pcs

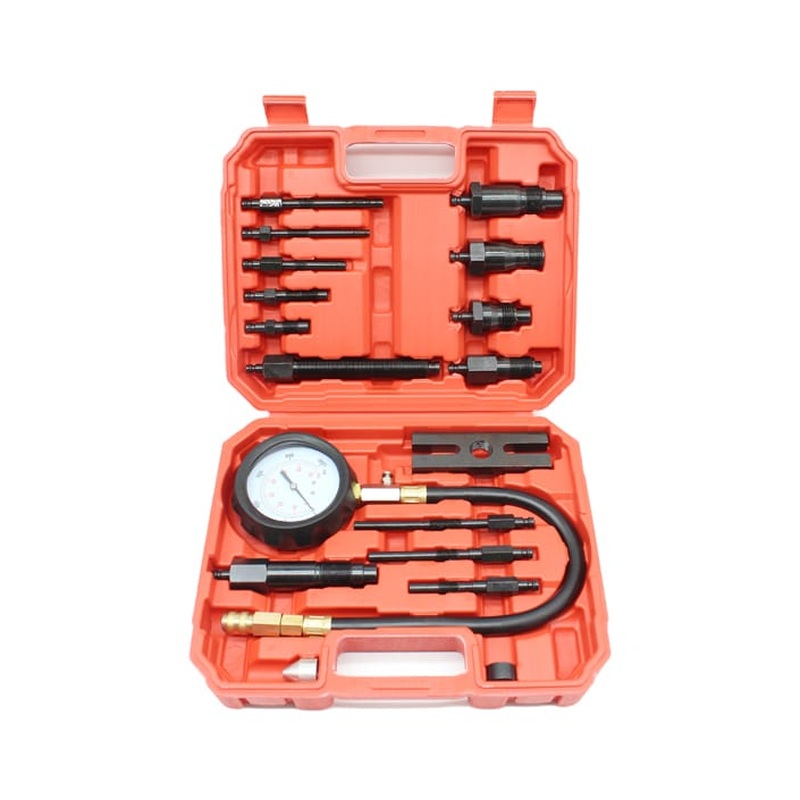

A 17-piece TU-15B diesel engine compression test set with a gauge reading 0-1000 PSI and BAR, a quick release push button valve, a flexible hose with 14 adapters and a pressure range up to 70 bar.
Specifications
- Model No.
- FJEG-S06
- Gauge
- 0-1000 PSI and BAR readings
- Valve
- Quick release push button valve
- Hose
- Flexible hose with 14 adapters
- Glow plug adapters
- M10x1.0: 83, 91, 102, 113, 119 mm; M10x1.25: 64, 135 mm; M12x1.25: 47 mm; M22x1.5: 118 mm
- Injector adapters
- M20x1.5: 75 mm; M22x1.5: 73 mm; M24x1.5: 88 mm; M24x2: 63 mm
- Pressure range
- Up to 70 bar
Typical Applications
A diesel engine compression test set with a gauge reading 0-1000 PSI and BAR, supplied with a flexible hose and 14 adapters.
Adapter Sizes Listed
Glow plug adapters: M10x1.0 in 83, 91, 102, 113 and 119 mm; M10x1.25 in 64 and 135 mm; M12x1.25 in 47 mm; M22x1.5 in 118 mm.
Injector adapters: M20x1.5 in 75 mm; M22x1.5 in 73 mm; M24x1.5 in 88 mm; M24x2 in 63 mm.
Gauge and Valve
The gauge reads 0-1000 PSI and BAR; the pressure range is up to 70 bar. A quick release push button valve is listed in the source specifications.
What Buyers Should Check Before Ordering
Adapter match — the source lists the glow plug and injector thread sizes above; confirm they match the engine in your program.
Packaging requirements — provide the required packaging format for review.
OEM & Private Label Support
This diesel compression test set can be sourced for wholesale programs, with OEM and private label options available subject to review of your requirements.
Send your quantity, target market, packaging, labeling and branding requirements through the inquiry form or WhatsApp for a quotation.
Frequently Asked Questions
What does the gauge read?
0-1000 PSI and BAR, with a pressure range up to 70 bar.
How many adapters are included?
14 adapters, listed in the source specifications with their thread sizes and lengths.
What engine type is this set for?
The source specifies it as a diesel engine compression test set.
What information is needed for a quotation?
Quantity, target market, packaging format, labeling and branding requirements.
